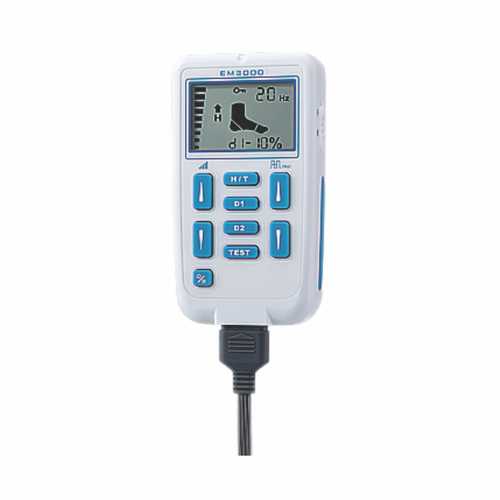

Functional Electrical Stimulator (Dual Channel)

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Specification

Available with Dual Channel,isolated between channels
Available with Pulse Amplitude
Adjustable 0-80 mA into 500 ohm load each channel
Available with Adjustable Output Voltage 0-40 V, Max output 40 V peak to peak into 500 ohm load each channel
Available with Wave Form Asymmetrical rectangular biphasic pulse
Available with Pulse Rate Adjustable, 2~100 Hz, 1 Hz / step
Available with Pulse Width Fixed at 180 us
Available with Switch for Method Activation: Selectable, H/T. Position "H" means heel. Place the heel switch under the heel of the affected leg and stimulation begins when contact is interrupted. Position "T" means Toe. Some patients may have so much spasticity in the affected leg that they cannot place weight on the heel. In these cases the stimulator can be activated via the front of the foot on the opposite leg. The switch is placed under the front of the foot on the opposite leg and the stimulator then emits pulses when contact is completed.
Available with Delay Start Stimulation (D1): Delaying the start of stimulation may be beneficial. The delay is adjustable between 0-50% of thegait cycle. Experimentation will determine the optimum settings
Available with Delay Stop of Stimulation (D2): Delaying the point at which stimulation ceases may prevent the foot from dropping too quickly at heel strike. The delay is adjustable between 0-50% of the gait cycle.Experimentation will determine the optimum settings. This feature may also prevent excessive supination of the foot during stance phase.
Available with Test Mode Compliance
This mode offers constant stimulation in order to test the intensity level desired Compliance can be checked. Cumulative treatment time is recorded up to a maximum of 999 hours
Available with Low Battery Sign
Available with Power Supply Two 1.5 Volt Batteries, type AA
Size of the Unit is 10.8 cm (L) — 6 cm (W) — 2.8 cm (H)
Weight of the Device is 135 grams(battery included)
