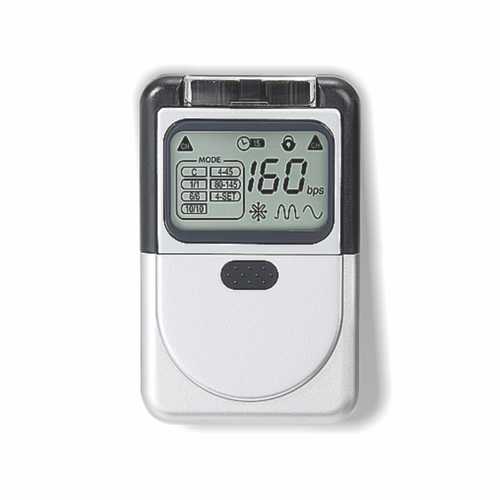

Interferential Therapy Unit

Product Description

Specification

• Available with Channel Dual,isolated between channels
• Available with Wave form Symmetrical Balanced Sine Wave
• Available with Carrier Frequency4000Hz, Fixed (CH1)
• IF Frequency available with 9variable modes, 1 constant mode, 5 frequency shift modes, 3 auto sweep Modes
• Timer available with 15, 30minute selectable
• Output Configuration is Quad polar (4 electrodes)
• Available with Modulating Frequency 4-160bps, Adjustable (CH2)
• Amplitude Adjustable 0-60mA pea kin to 500 ohm load each channel, constant current
• Available with Interference Pulse Frequency 4-160 bps Adjustable with 4 bps per step
• Available with Pulse Duration 125μs maximum
• Available with Patient Compliance Meter
• Lock facility prevents the patient from accidentally changing any of the set parameters
• LCD Displays mode, bps rate,abrupt/ramp, timer, and channels
• Low Battery A low battery indicator will show when the battery is low.
• Power Source 9 Volt DC adapter,500mA or 9 volt alkaline battery (not recommend due its short life)
• Tolerance There may be +/-10%tolerance of settings and 20% tolerance of output.
• Dimensions of the unit is107x62x27mm
• Weight of the unit is Approximately 150 grams, Battery included
