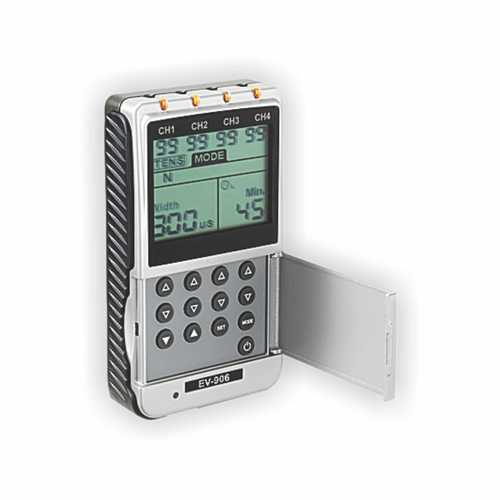

DIGITAL TENS + EMS (Four Channel)

Product Description

Specification

• Four Isolated Channels are available
• Pulse Amplitude Adjustable is 0-100 mA peak into 500 ohm load each channel
• Available with Asymmetrical Bi-Phasic Square Pulse Wave Form
• Two Separate adjustable Timers are available from 1 to 60minutes or Continuous
• Pulse Rate Adjustable from 2 to 150 Hz, 1 Hz/step
• Pulse Width Adjustable from 50 to 300 microseconds, 10 us/step
• On Time Adjustable, 2~90 seconds, 1 Sec/ step
• Off Time Adjustable, 0~90 seconds, 1 Sec/ step
• Ramp Time Adjustable between 1~8 seconds, 1 Sec./ step, The"On" time will increase and decrease in the setting value
• Five variable TENS Modes are available such as Burst, Normal,Modulation, SD1, SD2(Strength Duration)
• Three EMS Modes are available such as C(Constant) S(Synchronous), A(Alternate)
• Power source available with Fou r1.5V AA batteries
• Low Battery Indicator will show up when the battery is low
• Voltage 0 to 50 V (Load: 500 ohm)
• Size of the unit 13.8 cm (L) — 7.8 cm (W) — 2.8 cm (H) (Approx)
• Weight 425 grams with battery
• Available with Complete accessories such as Output Leads, self adhesive electrode, Carbon Rubber Electrodes, Straps, Adapter, Gel Bottle.
