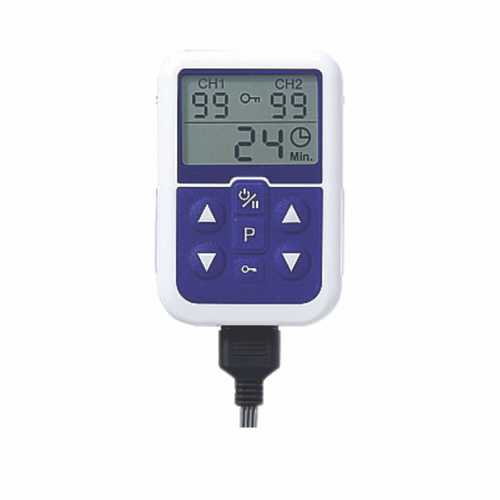

Trophical Programmable Stimulator

Product Description

Specification

• Two Isolated Channels are available
• Pulse Amplitude is Adjustable 0-80 mA into 500 ohm load each channel
• Available with 24 built in programs for 8 treatments such as Facial Palsy, Facial Synkines is Brachial Plexus Injury, Trophic Stimulation for Stroke Patients, Arthritic Conditions, Knee, Pain Management, Sports &Recent Injury
• Available with Timer Fixed, 10-200 minutes or Continuous
• Available with Asymmetrical Bi-Phasic Square Pulse Wave Form
• Available with Fixed Pulse Rate 2 to 150 Hz
• Available with Fixed Pulse Width 50 to 300 microseconds
• Available with On Time Fixed from 2~90 seconds
• Available with Off Time Fixed from 2~90 seconds
• Available with Ramp Time Fixed from 1~8 seconds
• Voltage of the device is 0 to 40V (Load: 500 ohm)
• Power source of the device is WO 1.5 Volt Battery, type AA
• Size of the Device is 9.2 cm (L) — 6.2 cm (W) — 2.85 cm (H)
• Weight of the Device 123g including 2 batteries.
• Available with Synchronous Mode Stimulation of both channel soccurs synchronously. The "ON" time including "Ramp Up" and"Ramp Down" time
• Available with Alternate Mode The stimulation of the CH2will occur after the 1st contraction of CH1 is completed.
• Available with Low Battery Sign
